MI1001

14th/13th/12th Gen Intel® Core™ DT Processors (RPL-S Refresh Platform) with Intel® Q670E PCH Mini-ITX Motherboard

14th/13th/12th Gen Intel® Core i9/i7/i5/i3 DT processors
2x DDR5 SO-DIMM sockets, Max. 64GB
Intel processor integrated graphic supports eDP, LVDS and 1x DisplayPort(1.4a) (DP++), HDMI(2.0)
2x Intel® 2.5G LAN & 2x Intel® 10G LAN
4x USB 3.2, 2x USB 2.0, 2x COM, 2x SATA III
1x PCI-E (x16) [Gen.5.0]; 2x M.2 (E-Key and M-Key )
Supports watchdog timer, Digital I/O, iAMT(16.1), TPM (2.0), +24V only DC input

Product Detail
Specification
Ordering Information
Download

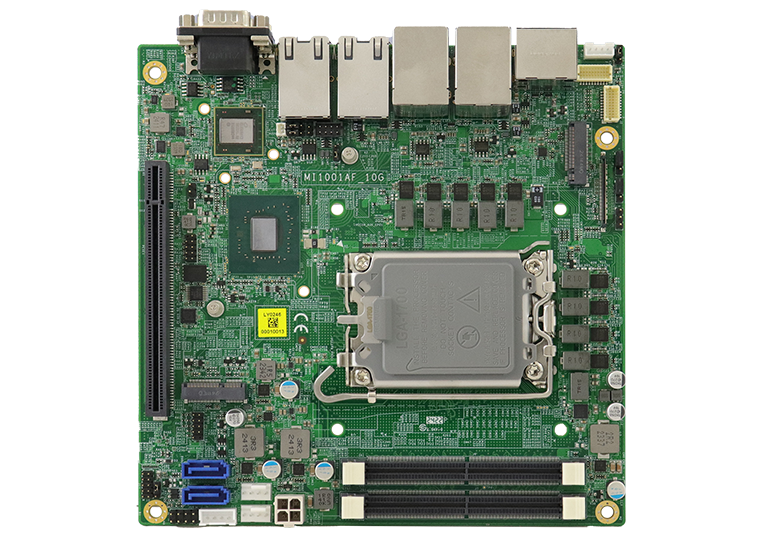

The MI1001 is a Mini-ITX motherboard powered by 14th/13th/12th Gen Intel® Core™ DT processors (RPL-S Refresh Platform) with the Intel® Q670E chipset. This advanced motherboard supports up to 64GB of DDR5 memory and features integrated Xe graphics architecture that provides support for multiple displays, making it ideal for applications requiring high-quality video output and graphics performance. It offers exceptional performance for industrial and commercial applications, ensuring reliability and versatility for a variety of uses such as smart retail, automation, and IoT devices.

The MI1001 comes in two distinct models: the MI1001AF-10G, which is equipped with dual 10GbE and dual 2.5GbE LAN ports, and the MI1001AF-Q, which features dual 2.5GbE LAN ports. The advanced LAN options in the MI1001AF-10G make it particularly suited for bandwidth-intensive applications. Both models include support for 4x USB 3.2, 2x USB 2.0, 2x SATA III, 2x COM ports, and 2x M.2 expansion slots (E-Key and M-Key). The M.2 M-key slot utilizes PCI-E (x4) lanes and supports NVMe SSDs, ensuring ultra-fast data transfer speeds for demanding applications. The board also features HDMI, DisplayPort, LVDS, and eDP interfaces.

Enhanced security features like TPM 2.0 and modern manageability, thanks to Intel’s iAMT (16.1) technology, make the MI1001 suitable for secure data transmission and remote management. These features are critical for secure data transmission and remote monitoring in industrial environments.

CPU Socket	LGA1700
CPU	14th/13th/12th Gen Intel® RPL-S Refresh Core i /DT processors
PCH	Q670E
Memory	2x DDR5 SO-DIMM sockets, supports DDR5 -5600 memory module, Max. 64GB DDR5-5600 only by Core i9/i7 Processor & 1R memory module
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	SATA III & NVMe
Expansion Slots	1x PCI-E (x16) [Gen 5.0]
Mini Type Slots	1x M.2 (M-Key, type:2280, PCI-E(4x) Gen.4) 1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E 3.0)
Graphics Controller	14th Gen Intel® RPL-S Refresh DT processor integrated Xe graphics architecture
Video Output	1x eDP + 1x DisplayPort (1.4a) (DP++) + LVDS + 1x HDMI (2.0)
Ethernet	LAN 1: Intel® I226LM,supports 2.5G and iAMT LAN 2: Intel® I226V, supports 2.5G only LAN 3&4: Intel® X550-AT2, supports 10G (For MI1001AF-10G only)
I/O Chip	Fintek F81966AB-I
Serial Port	2x COM ports: 1x RS232/422/485 + 1x RS232
USB 2.0	2x USB 2.0 via pin-header
USB 3.X	4x USB 3.2 (10Gbps) @ edge connector
Serial ATA	2x SATA III
Audio	NA
TPM	dTPM
Others	Digital I/O (4-in/4-out), Watchdog timer
Dimensions (L X W)	170mm x 170mm (6.7“x 6.7“)
Power Consumption	TBD
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)

MI1001AF-10G	LGA1700 MiniITX Motherboard, Q670E PCH, w/ Dual 10GbE, Dual 2.5GbE, HDMI + DisplayPort + eDP + LVDS, 2x SATA III, 2x COM, 2x M.2 (M2280/ E2230), supports iAMT(16.1) & dTPM(2.0), DC-in (24V only)
MI1001AF-Q	LGA1700 MiniITX Motherboard, Q670E PCH, w/ Dual 2.5GbE, HDMI + DisplayPort + eDP + LVDS, 2x SATA III, 2x COM, 2x M.2 (M2280/E2230),supports iAMT(16.1) & dTPM(2.0), DC-in (24V only)
