MI836

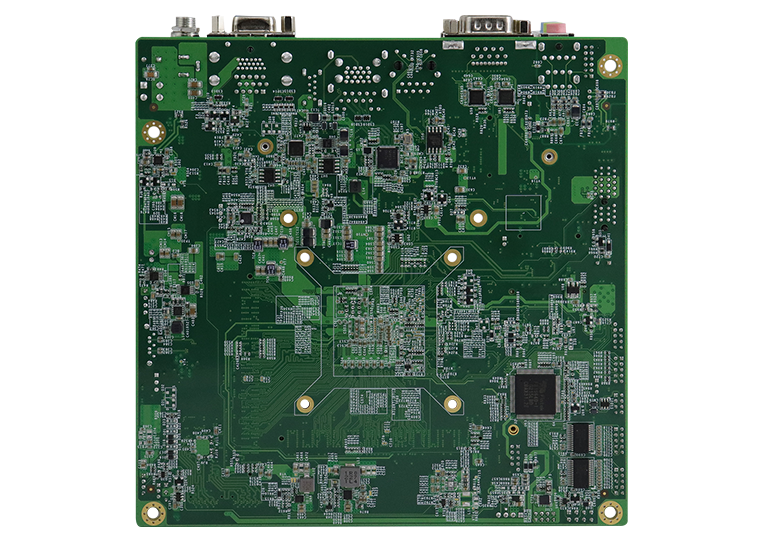

Intel® Atom® x6000 series SoC Mini-ITX Motherboard

Onboard Intel® Atom® x6000 series processors
2x DDR4-3200 SO-DIMM sockets, Max. 32GB, supports IBECC
Intel® Atom® processor integrated graphics HDMI (2.0b), VGA and LVDS or eDP
Dual Intel® 2.5G LAN (I226IT)
3x USB 3.1, 4x USB 2.0, 4x COM, 1x SATA III
1x PCI-E (x1) [Gen. 3.0], 1x mPCIe, 2x M.2 sockets (M-key & E-key)
Watchdog timer, Digital I/O, fTPM
Wide-range operating temperature from -40°C to +70°C

Product Detail
Specification
Ordering Information
Download

The MI836 is an industrial-grade Mini-ITX motherboard based on Intel® Atom® x6000E processor, with TDP ranges from 6W to 12W. It supports both passive and active thermal solutions with a wide operating temperature range from -20°C to 70°C, ensuring reliable operation even in outdoor and semi-outdoor environments.

Wide-Temp MI836 Mini-ITX Motherboard for Reliable 24/7 Operation

The MI836 is practically suitable for various industries or applications that require the combination of performance and low-power design offered by the platform. These applications include real-time control systems, fleet monitoring and management systems, kiosks, and point-of-sale (POS) systems. It is equipped with 12V~24V DC input, two Intel® 2.5G Ethernet controllers, two DDR4 3200MHz slots with 32GB capacity and IBECC (In Band ECC) and graphics interface for HDMI (2.0b), VGA, and eDP or LVDS displays.

The MI836 provides a comprehensive set of I/O including 3x USB 3.1, 4x USB 2.0, 1x SATA III, 2x RS-232 COM, and 2x coastline RS-232/422/485 COM ports for secure serial communication over a network, and a variety of expansion slots, such as 1x PCIe Gen. 3, 1x mPCIe, 2x M.2 sockets (M-key and E-key) for add-on cards, storage devices and wireless connectivity. Supported operating systems include 64-bit Windows 10, Yocto, and Ubuntu.

CPU	Intel® Atom® QC x6425E (2.0GHz / 3.0 GHz) Intel® Atom® QC x6413E (1.5GHz / 3.0 GHz) Intel® Atom® DC x6211E (1.3GHz / 3.0 GHz)
PCH	Integrated in Intel® Atom® SoC
Memory	2x DDR4 SO-DIMM sockets, Supports DDR4-3200 memory module, Max. 32GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x SATA III (shared with M.2)
Expansion Slots	1x PCI-E (x1) [Gen.3.0]
Mini Type Slots	1x M.2 (M-key, type:2280, SATA III) 1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E) 1x MiniPCI-E (Full-size, USB 2.0 + PCI-E)
Graphics Controller	Intel® Atom® SoC integrated
Video Output	1x HDMI (2.0b) + 1x VGA + LVDS or eDP
Ethernet	LAN 1: Intel® I226IT LAN 2: Intel® I226IT
I/O Chip	Fintek F81964D-I
Serial Port	4 COM ports: 2x RS232/422/485 + 2x RS232
USB 2.0	4x USB 2.0 via pin-header
USB 3.X	3x USB 3.1 (5Gbps) @ edge connector
Serial ATA	1x SATA III
Audio	Built-in HD audio controller + Realtek ALC888S with class-D amplifier
TPM	Supports fTPM
Others	Digital I/O (4-in/4-out), Watchdog timer, +12V ~+24V DC-in, with fanless heatsink
Dimensions (L X W)	170mm x 170mm (6.7” x 6.7”)
Power Consumption	TBD
Operating Temperature	-40°C~+70°C (-40°F~158°F)
Storage Temperature	-40°C~+80°C (-40°F~176°F)
Relative Humidity	90% (non-condensing @60°C)

MI836F-6425E	Intel Atom® x6425E (2.0GHz~3.0GHz) + fanless heatsink onboard Mini ITX, w/ Intel I226IT LAN x2, HDMI, VGA, LVDS, 12~24V DC-in, wide temperature support
MI836FE-6425E	Intel Atom® x6425E (2.0GHz~3.0GHz) + fanless heatsink onboard Mini ITX, w/ Intel I226IT LAN x2, HDMI, VGA, eDP, 12~24V DC-in, wide temperature support
MI836F-6413E	Intel Atom® x6413E (1.5GHz~3.0GHz) + fanless heatsink onboard Mini ITX, w/ Intel I226IT LAN x2, HDMI, VGA, LVDS, 12~24V DC-in, wide temperature support
MI836FE-6211E	Intel Atom® x6211E (1.3GHz~3.0GHz) + fanless heatsink onboard Mini ITX, w/ Intel I226IT LAN x2, HDMI, VGA, eDP, 12~24V DC-in, wide temperature support
