MI995

8th Gen Intel® Xeon® E / Core™ i7/i5/i3 Mini-ITX Motherboard

8th Gen Intel® Xeon® E/ Core™ i7/ i5/ i3
2x DDR4 SO-DIMM sockets, Max. 32GB
Supports eDP, HDMI(2.0a) / DVI-D and DisplayPort
2x Intel® Gigabit LAN
6x USB 3.1, 4x USB 2.0, 4x COM, 4x SATA III
1x PCI-E(16x), 1x Mini PCI-E, 2x M.2
Watchdog timer, Digital I/O, iAMT(11.6), TPM(2.0), iSMART, vPRO (MI995VF series)

Product Detail
Specification
Ordering Information
Download

The MI995 is a low-power Mini-ITX based on the latest 8th Gen Intel® Core™ / Xeon® E family processors and Intel® CM246/QM370 mobile chipset. It delivers stunning graphics and media performance and supports up to three independent displays in eDP, HDMI 2.0a, DVI-D and DisplayPort outputs, which makes it ideal for gaming/entertainment, digital signage and POS applications. The motherboard has two DDR4-2666 SO-DIMM sockets accepting up to 32GB memory with ECC. Apart from enhanced performance of CPU and graphics, the MI995 features optimized I/O with onboard 6x USB 3.1, 4x USB 2.0, 4x COM, and up to 4x SATA III to empower real-time IoT and data-intensive applications.

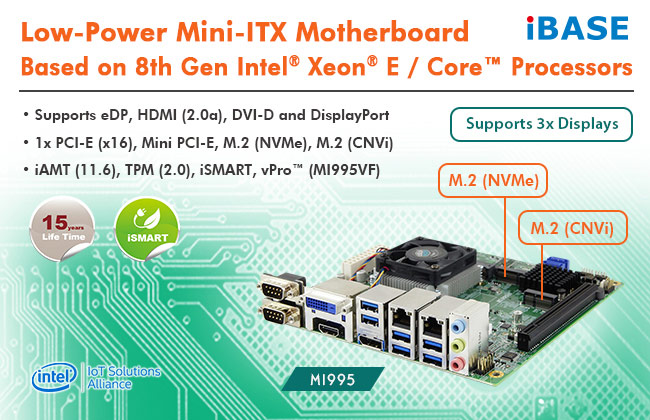

MI995 Mini-ITX Motherboard

The MI995 is available in three variants – supporting Intel CM246/Xeon E-2176M, Intel QM370/Core i7-8850H, and Intel QM370/Core™ i5-8400H, all with dual Intel Gigabit Ethernet. Additionally, it provides 1x PCIe(x16), 1x Mini PCIe, and 2x M.2 slots for NVMe drives and wireless devices, such as WiFi and Bluetooth. Advanced features include iAMT (11.6) for remote system management, TPM (2.0) for systems integrity, and iSMART technology that enables energy-efficient systems.

CPU Socket	FCBGA1440
CPU	8th Gen Intel® Xeon® E / Core™ i7/i5/i3 processors
PCH	MI995VF-X27: Intel® CM246 PCH MI995VF-8850/8400: Intel® QM370 PCH MI995EF-8100: Intel® HM370 PCH
Memory	2x DDR4-2666 SO-DIMM socket, Max. 32GB (supports ECC by CPU SKUs)
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	mSATA, M.2
Expansion Slots	1x PCI-E (x16)
Mini Type Slots	1x Mini PCI-E 1x M.2 (M-Key, type:2280, NVMe) 1x M.2 (E-Key, type:2230, CNVi)
Graphics Controller	8th Gen Intel® Xeon®/ Core™ i7/i5/i3 processor integrated
Video Output	Supports eDP, HDMI(2.0a), DisplayPort and DVI-D
Ethernet	LAN 1: MI995VF-Series: Intel® I219LM Gigabit LAN PHY MI995EF: Intel® I219V Gigabit LAN PHY LAN 2: MI995VF-X27: Intel® I210AT Gigabit LAN MI995VF-8850/8400/MI995EF-8100: Intel® I211AT or I210AT Gigabit LAN
I/O Chip	Fintek F81964D-I
Serial Port	2x RS232/422/485, 2x RS232
USB 2.0	4x USB 2.0 via pin header
USB 3.X	6x USB3.1 on board
Serial ATA	MI995VF-X27: 4x SATA III MI995VF-8850/8400, MI995EF-8100: 2x SATA III
Audio	Intel® [CNL PCH-H integrated] built-in HD audio + Realtek ALC888S codec
TPM	TPM (2.0)
Others	Digital I/O (4-in/4-out); TPM 2.0, iSMART, EuP/ErP, RAID, iAMT (11.6), ATX
Dimensions (L X W)	170mm x 170mm (6.7" x 6.7")
Power Consumption	Intel® Core™ i5-8400H, 2.50GHz, w/ 2 x 16GB DDR4-2133 +12V: 3.01A +5V: 1.43A +5VSB: 0.15A +3.3V: 0.32A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)

MI995VF-X27	Intel® CM246/ Xeon® E-2176M Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.5), CPU cooler on board
MI995VF-8850	Intel® QM370/ Core™i7-8850H Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.5),CPU cooler on board
MI995VF-8400	Intel® QM370/ Core™i5-8400H Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), RAID, vPro, iAMT (11.6), iSMART (3.5),CPU cooler on board
MI995EF-8100	FCBAG1440 Intel® HM370/ Core™ i3-8100H Mini-ITX motherboard, w/ HDMI (2.0a), DisplayPort, DVI-D and eDP, dual Gigabit LAN, TPM (2.0), EuP/ErP, CPU cooler on board
