Embedded Computing
IBR115

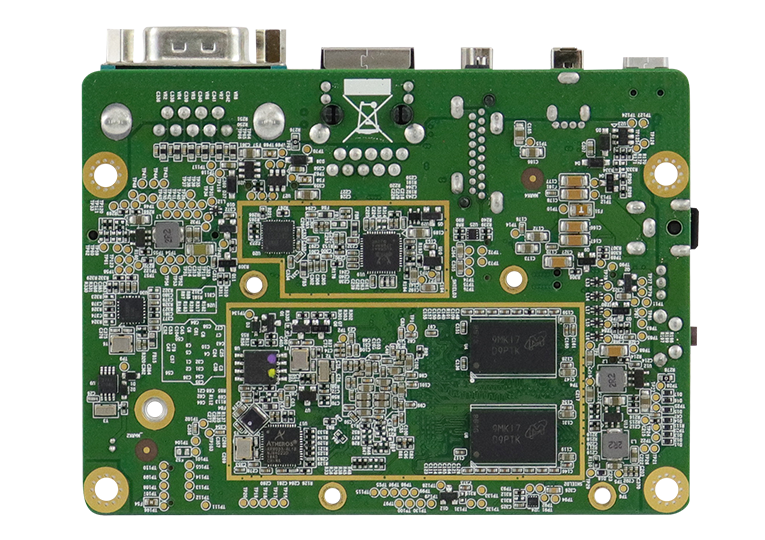

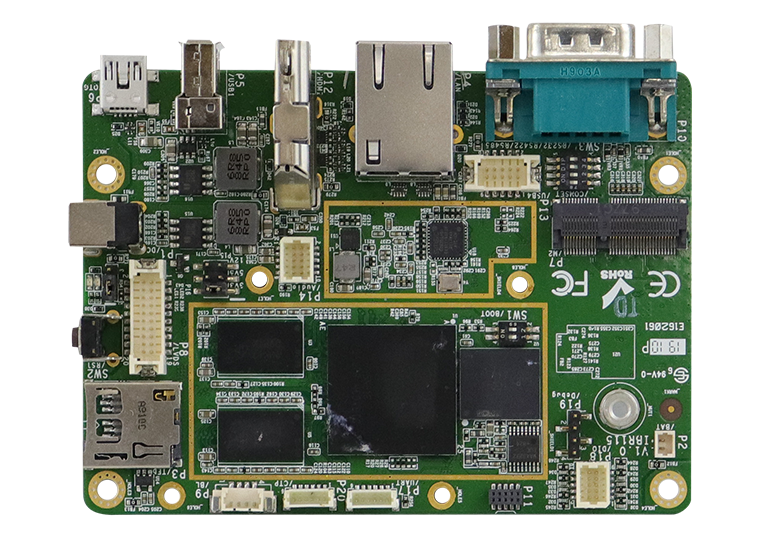

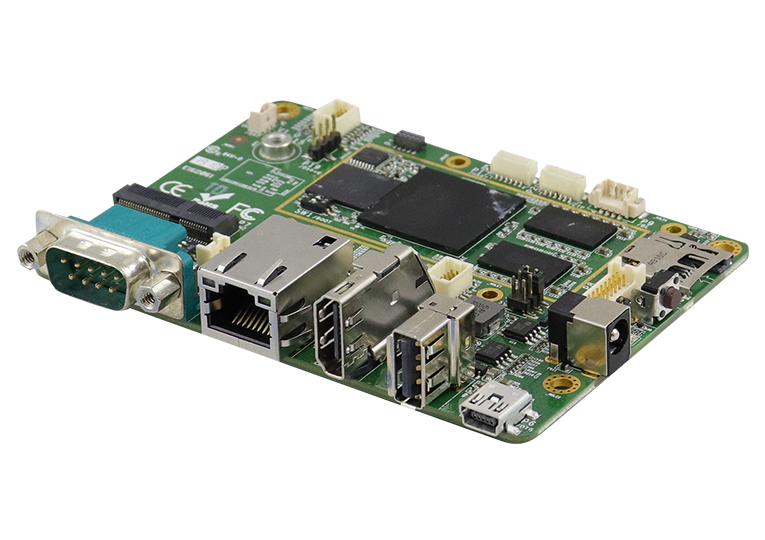

NXP ARM® Cortex-A9 i.MX 6 Dual-Lite 1GHz Processor 2.5-inch SBC
- NXP Cortex™-A9, i.MX 6Dual-Lite 1GHz processor
- Supports HDMI and single LVDS interface
- Supports 1GB DDR3, 4GB eMMC and Micro SD socket for expansion

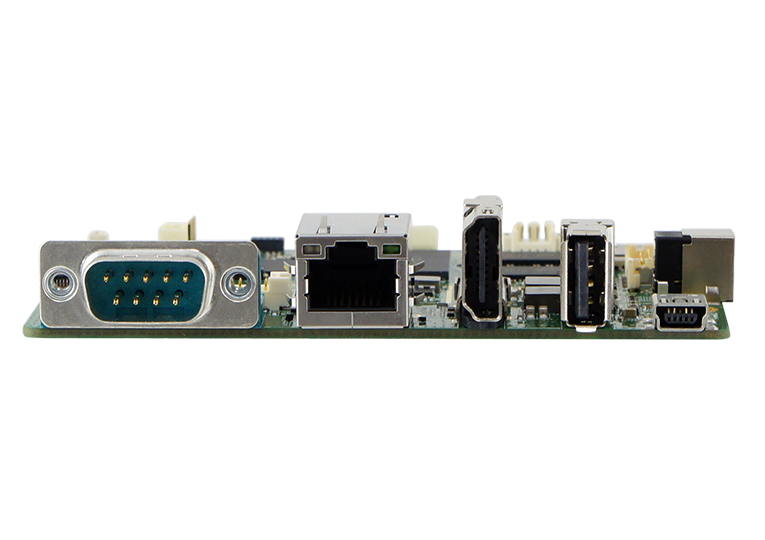

- Embedded I/O as COM, GPIO, USB, USB-OTG, audio and Ethernet
- M.2 Key-E (2230) for wireless connectivity
CPU | NXP Cortex™- i.MX 6 Dual-Lite Processor, 1GHz |
PCH | SoC |
Memory | 1GB DDR3 on board |
BIOS | N/A |
Watchdog Timer | 256 levels, 0~128 secs |
H/W Monitor | Yes |
Storage Device Interface | 4GB eMMC on board (Up to 64 GB) |
Mini Type Slots | 1x M.2 (E-Key, type:2230) w/ USB, SDIO, UART, PCI-E |
Graphics Controller | Vivante GC880, OpenGL ES 2.0 Vivante GC320 |
Video Output | 1x HDMI 1.4 (FHD) 1x Single channel LVDS |
Ethernet | 1x RJ45 GbE LAN |
I/O Chipset | N/A |
Serial Port | 1x RS232 /422/485 (DB9 coonnector) 2x RS232 (DB9 connector) |
USB 2.0 | 1x USB 2.0 Type-A 2x USB 2.0 header |
USB 3.X | N/A |
Serial ATA | N/A |
Audio | internal header (1x line-in, 1x line-out) |
TPM | N/A |
Others | OS Support: Yocto v2.1/ Yocto v2.5/ Android 6.0.1 CE/ FCC Class-B 12V DC-in jack |
Dimensions (L x W) | 100mm x 72mm (3.94" x 2.83") |
Power Consumption | NXP i.MX 6 Dual-Lite,1 GHz w/ 1GB DDR3,+12V: 1A |
Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
Storage Temperature | TBD |
Relative Humidity | 10%~90% (non-condensing) |
IBR115 | 2.5” ARM-based SBC, NXP Cortex™-A9, i.MX 6Dual-Lite 1GHz processor, 1GB DDR, 4GB eMMC, Single LVDS, HDMI, RS-234/422/485, USB, M.2 E-Key (2230) |
