IB200

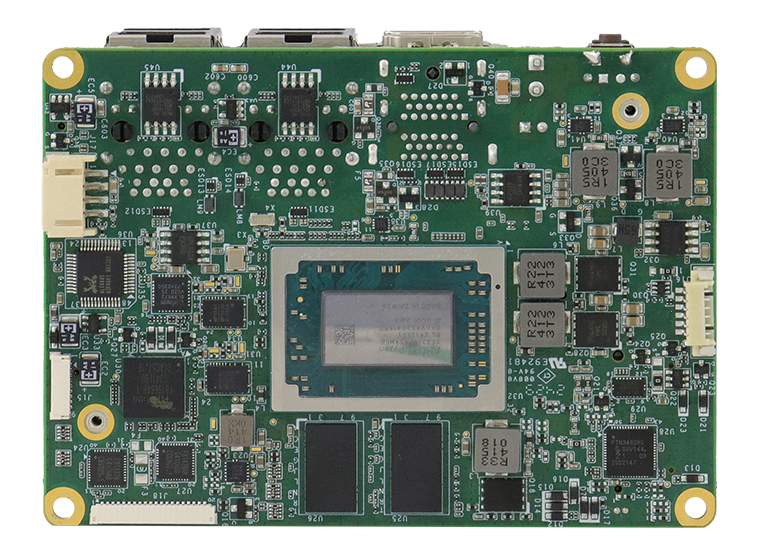

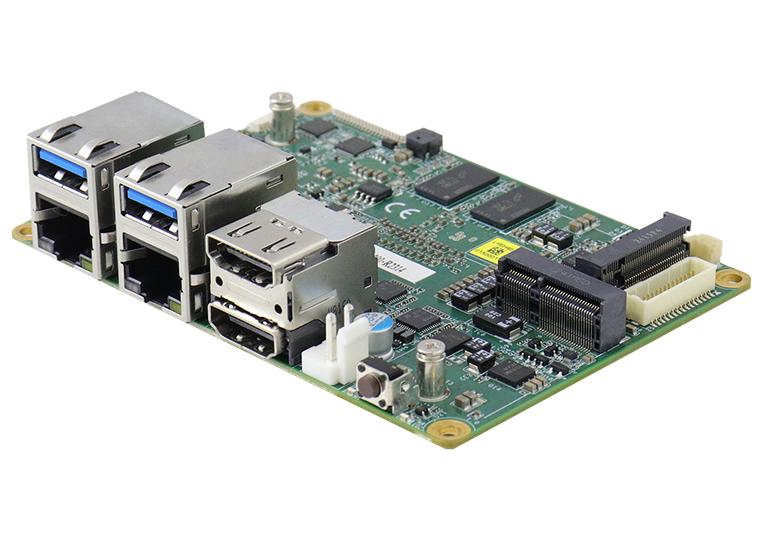

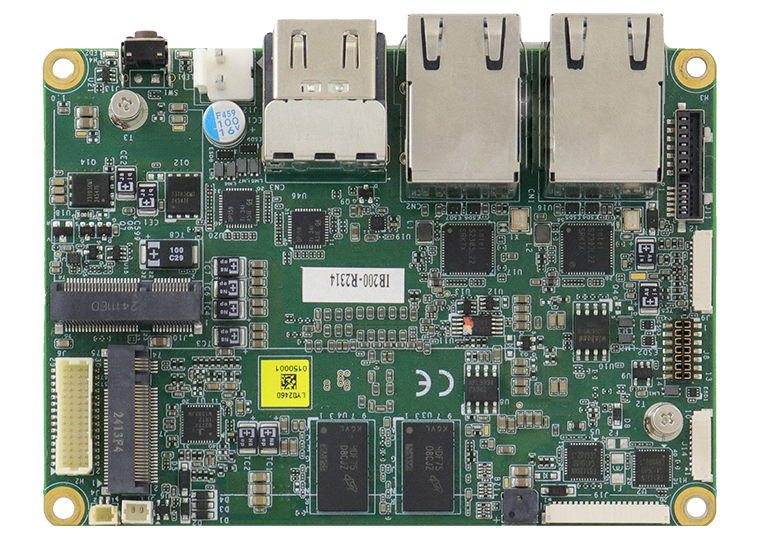

AMD Ryzen™ Embedded R2000 Series 2.5" Single Board Computer
- AMD Ryzen™ Embedded R2000 series APU on board, up to 4 cores/8 threads
- Onboard DDR4 memory, Max. 8GB
- 2x HDMI 2.0b & LVDS: 5V/3.3V, 24 bit, dual channel (LVDS: 1920x1200 @60 Hz)

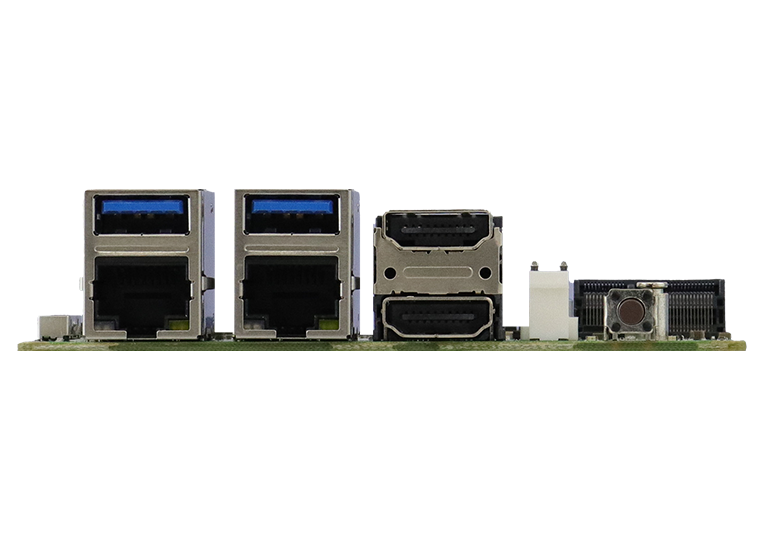

- 2x GbE LAN, 4x COM, 2x USB 3.2 Gen2 (10Gbps) [with PDPC support], 3x USB 2.0 via pin headers
- Supports 1x M.2 (M-Key, type 2280) & 1x M.2 (E-Key, type 2230)
- Supports 4x COM - COM1/COM2: RS-232/422/485, COM3/COM4: RS232 (Default: RS-232, adjustable in BIOS)
- Energy-efficient 12-25W thermal design
The advanced IB200 2.5" single board computer (SBC) offers exceptional graphics processing performance with the AMD Ryzen™ Embedded R2000 Series. Featuring 4 cores and 8 threads integrated with the AMD Radeon Vega graphics controller, it delivers twice the CPU core count compared to the R1000 Series.
![The advanced IB200 2.5" single board computer (SBC) offers exceptional graphics processing performance with the AMD Ryzen™ Embedded R2000 Series](assets/ContentBuilder/uploads/edit/o8p8q9032237.jpg)
The industrial-grade IB200 SBC ensures a seamless multimedia experience with two HDMI 2.0b ports supporting 4K display and a dual-channel LVDS with a resolution of 1920x1200 @ 60Hz. It offers a comprehensive set of connectivity options, including dual Intel I226IT Gigabit LAN ports, four COM, two USB 3.2 Gen2 (10Gbps) ports with PDPC support, three USB 2.0 headers, and one M.2 2280 M-key and one M.2 2230 E-key slot, ensuring flexibility in storage selection and speed. Additionally, the board is equipped with TPM 2.0 and a SATA II interface, making it a versatile solution for various industrial IoT applications.
The IB200 comes with an energy-efficient 12-25W thermal design and delivers robust operation with an operating temperature range from 0°C to 60°C. The mini SBC, with dimensions of 100mm by 72mm, is designed for industries requiring powerful computing in a compact form factor. Its advanced features and connectivity options make it an ideal choice for modern edge computing applications such as manufacturing, industrial automation and smart retail, ensuring long-term reliability and superior graphics performance.
CPU | AMD Ryzen™ Embedded R2000 Series on board |
PCH | N/A |
Memory | Onboard DDR4 memory, Max. 8GB |
BIOS | AMI |
Watchdog Timer | 256 levels |
H/W Monitor | Yes |
Storage Device Interface | 1x SATA III 1x M.2 (M-Key) |
Mini Type Slots | 1x M.2 (M-Key, type 2280) 1x M.2 (E-Key, type 2230) |
Graphics Controller | AMD Radeon™ Vega integrated |
Video Output | 2x HDMI (2.0b), 1x 24-bit dual channel LVDS |
Ethernet | 2x Intel® I226IT Gigabit LAN |
I/O Chipset | Fintek F81966AB-I |
Serial Port | COM1 / COM2 : RS-232/422/485 (Default: RS-232, adjustable in BIOS) COM3 / COM4 : RS232 |
USB 2.0 | 3x USB 2.0 (pin header) |
USB 3.X | 2x USB 3.2 Gen2 (10Gbps) |
Serial ATA | 1x SATA II |
Audio | Built-in audio w/ Realtek audio codec ALC888S-VD2-GR |
TPM | 2.0 |
Others | Digital I/O(4-in/ 4-out) |
Dimensions (L x W) | 100mm x 72mm |
Power Consumption | TBD |
Operating Temperature | 0°C~60°C (32°F~140°F) |
Storage Temperature | -20°C~80°C (-4°F~176°F) |
Relative Humidity | 90% (non-condensing@60°C) |
IB200 | AMD Ryzen™ R2312 APU (2.7GHz~3.5GHz) on board 2.5-inch Disk-Size w/ dual LAN, 2x HDMI, LVDS (24-bit dual-channel), EuP/ErP, 12V DC-in |
