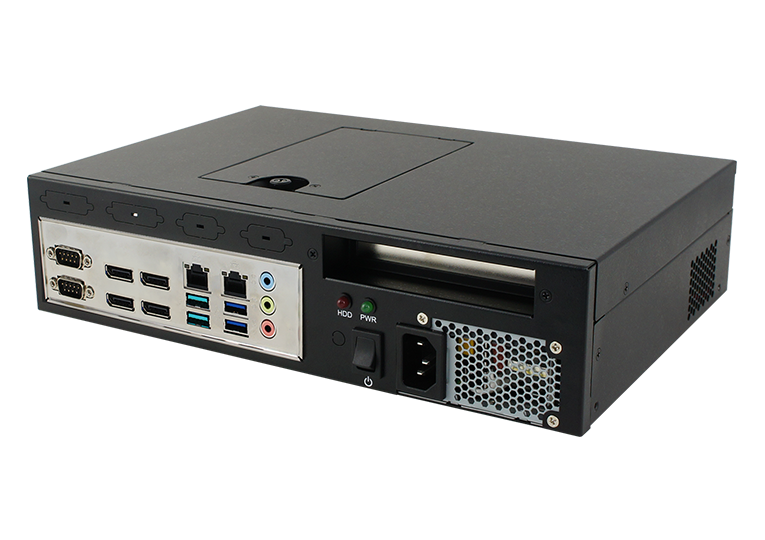

Intelligent System
CMI211-989
Expandable System with IBASE MI989 Mini-ITX Motherboard
- AMD Ryzen™ Embedded V2000 Series
- 4x DisplayPort 1.4
- Supports 2x RS232 & 2x RS232/422/485
- Dual Intel® Gigabit LAN
- 3x USB 3.1, 2x USB 2.0, 1x SATA III
- Expansion PCI-E(x16) slot
- Supports 1x 2.5" SATA HDD drive bay and mSATA drive
The CMI211-989 is an embedded system powered by AMD Ryzen Embedded V2000 processors based on the innovative “Zen 2” x86 core architecture using advanced 7nm manufacturing process. The system harnesses the power AMD Ryzen™ Embedded V2748/V2718 CPU with Radeon™ Graphics to enable 25% more PCIe lanes and deliver 40 percent better graphics performance over the previous generation SoC.
![CMI211-989 Embedded System](assets/ContentBuilder/uploads/edit/9xg38x074348.jpg)
CMI211-989 houses IBASE’s MI989 Mini-ITX motherboard supporting up to four independent 4K displays via DP 1.4 ports to create 3D immersive experiences in retail, gaming, and factory automation applications. Measuring 269(w)
x 193(d) x 31.5(h) mm, it offers rich I/O connectivity, storage, expansion capabilities and supports 4x COM, 3x USB3.1, 2x USB2.0, a 2.5” drive bay and a PCIe(x16) slot for riser cards expansion.
CMI211-989 has a planned product availability of 10 years and is suitable for use with operating systems such as Windows 10 (64-bit) / 8.1 (64-bit) / 7 (32-bit / 64-bit) and Linux Ubuntu (64-bit).
System Mainboard | MI989F |
CPU Type | AMD Ryzen™ Embedded V2000 series |
PCH | AMD integrated SoC |
System Speed | Up to 4.15 GHz |
Memory | 2x DDR4-3200 SO-DIMM |
Front-side Panel I/O | 2x USB 2.0 ports 2x Antenna hole |
Rear-side Panel I/O | 2x COM 4x DisplayPort 1.4 2x RJ-45 Gigabit Ethernet port 2x USB 3.1 ports 2x USB 2.0 ports 1x Audio port for [Line-in / Line-out / Mic-in] 1x AC-inlet, 1x Power button 1x Power LED, 1x HDD LED |
Storage Interface | SATA: 1x 2.5" HDD drive bay M.2 / mSATA: 1x M.2 |
Expansion Slots | PCI-E Expansion: 1x PCI-E (x16) expansion slot Add-on card Max. Size: 111mm(W) x 168mm(D) x 18mm(H) |
Power Supply | Industrial 250W ATX power supply Input voltage: 100V ~ 240V Input frequency: 47Hz ~ 63Hz Compatible with IEC62368-1/EN62368-1 |
Construction | SECC |
Chassis Color | Black |
Mounting Type | Wall mount & Desktop |
Dimensions | 300m (W) x 205mm (D) x 72mm (H) 11.81" (W) x 8.07" (D) x 2.83" (H) |
Weight | TBD |
Operating Temperature | 0°C~45°C (32°F~113°F) |
Storage Temperature | -20°C~80°C (-4°F~176°F) |
Relative Humidity | 5% ~ 90% @45C (Non-condensing) |
Vibration | Non-Operating : 1.0 grms / 5~500Hz / random Operating : 0.25 grms / 5~500Hz / random |
Certification | CE / LVD / FCC Class B (Pre-scan only) |
CMI211-989-2748 | Chassis with MI989F-2748 (AMD V2748) + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2 |
CMI211-989-2718 | Chassis with MI989F-2718 (AMD V2718) + IP119 riser card, w/o HDD, memory, w/ 250W PSU, 2.5" HDD holder, 1x PCI-E (x16) expansion slot (RoHS2) |
