Intelligent Transportation
MPT-7100V
E-Mark Certified 13th Gen Intel® Core™ Processor In-Vehicle Computer System with WWAN Redundancy
- Robust M12 & FAKRA connectors with rich I/O interface
- Dual SIM sockets support WWAN redundancy
- Onboard isolated CAN 2.0A / 2.0B / CAN-FD
- Full car battery Ignition power control
- Two removable 2.5” device bay for SSD storage
- Rich I/O interfaces for wireless, SSD, GPS, WWAN and add-on card expansion
- Wide-range voltage GPIO interface
- 1x USB Type-C Alternate mode with PD 60W
- Fanless and ruggedized design
The MPT-7100V is a rugged in-vehicle computer designed for commercial fleets, heavy-duty vehicles, and logistics. Engineered with the 13th Gen Intel® Core™ processor, this device can operate in extreme temperatures ranging from -40°C to 70°C. Its fanless aluminum chassis ensures durability, providing resistance against shock, vibration, and dust.
The device offers substantial storage solutions with dual 2.5" SSD bays supporting up to 5TB and RAID configurations, alongside an M.2 M-key slot for high-speed NVMe storage. For further functionality, it features a USB Type-C port supporting Alternate Mode and 60W Power Delivery for efficient power management and device charging. It is E-mark certified, adhering to European vehicle regulations, and incorporates Trusted Platform Module (TPM) technology for secure operations.
Combining ignition control and a wide voltage input range (9V to 36V DC), the MPT-7100V is a robust solution for telematics, fleet management, surveillance, and other mission-critical tasks in demanding environments. Its extensive I/O capabilities and support for AI-driven applications ensure adaptability and future-proof performance across a range of automotive applications.
| System Mainboard | MBT-7101V |
| CPU Type | 13th Gen Intel® Core U-Series Processor |
| Processor Speed | Up to 3.0GHz |
| Memory | 2x 8GB DDR5-4800 SO-DIMM (Dual Channel) |

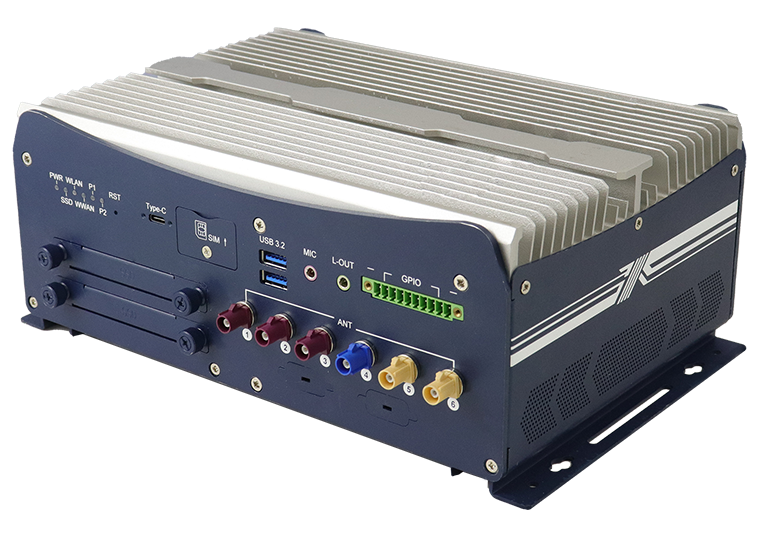

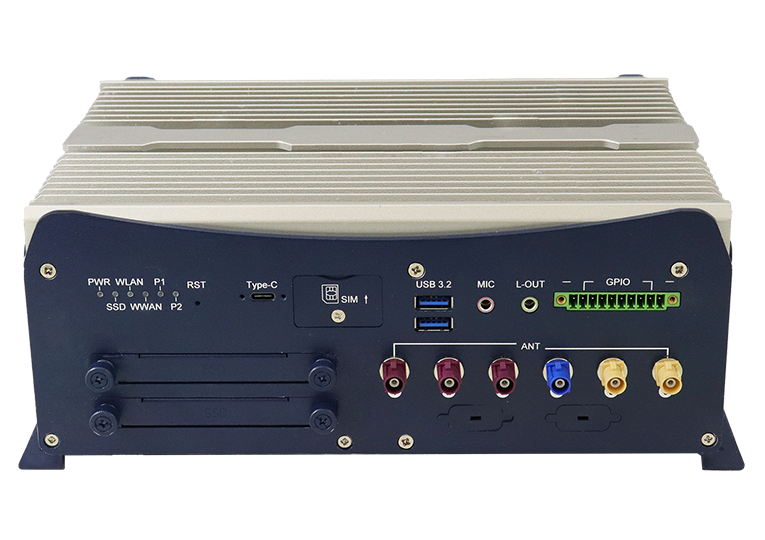

| Front panel I/O | 2x USB3.2 Gen2 stack Type-A connector 2x External accessible SIM socket 1x USB Type-C connector with screw-lock 2x Removable 2.5“ SSD device bay 1x 3.5mm green color audio for Line-out 1x 3.5mm pink color audio for MIC-in 1x Reset button 1x 10-pin terminal block for isolated digital I/O 6x FAKRA antenna holes (optional SMA type) 6x Light-pipe for status LED indicators (2x programmable) |

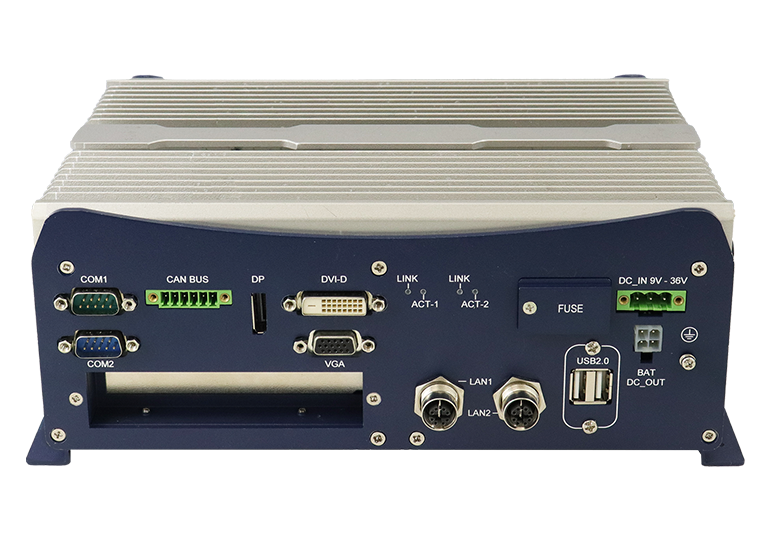

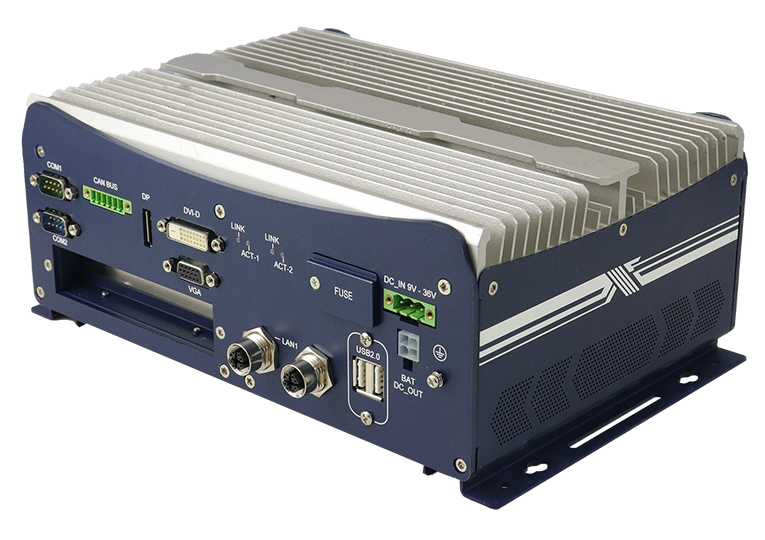

| Rear Panel External I/O | 2x M12 X-code 8P female for 2.5 GbE LAN1/LAN2 2x USB 2.0 Type-A connector 1x 3-pin terminal block for DC-input 1x DisplayPort output 1x DVI-D connector, 1 x VGA connector 1x 6-pin terminal block for 2x CAN bus master 2x DB9M for COM#1 (RS232/422/485) / COM#2 (RS232 only) 1x Removable blade fuse holder 4x Light-pipe for LAN status LED indicators 1x PCI-E (x4) slot 1x M3 with washer screw hole for grounding connection |
| Storage | 1x M.2 2280 M-Key socket for NVMe SSD (PCI-E x4 [Gen.4]) 2 x 2.5“ removable device bay for SSD |
| Expansion slots | 1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB2.0 + SMBus). 1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (PCI-E + USB3.2 + SMBus). 1x M.2 2280 M-Key socket for NVMe SSD / Hailo AI module (PCI-E x4 [Gen.4]) 1x Mini PCI-E full-size socket for MVB/CAN FD module (PCI-E + USB2.0 + SMBus) 1x Mini PCI-E half-size socket (USB 2.0) |
| Power Supply | DC-input 9V ~ 36V |
| Construction | Aluminum |
| Chassis Color | Black |
| Mounting | Wall mount |
| Dimensions | 256.0 (W) x 182.0 (D) x 97.3 (H) mm 10.08” (W) x 7.17” (D) x 3.83” (H) |
| Operating Temperature | -40°C ~70°C (-40°F~158°F) (w/o FAN & SSD) -20°C ~55°C (-4°F~131°F) (w/ PCI-E card) |
| Storage Temperature | -40°C ~ 85°C (-40°F~185°F) |
| Relative Humidity | 10 ~ 95% RH @45°C (non-condensing) |
| Vibration | Operating/Non-operating (SSD): 2,26 Grms (5~500 Hz) / MIL-STD-810G, composite wheeled condition (Z-axis only) |
| Shock | Operating: Sawtooth: 20G, 11msec (Z-axis) /MIL-STD810G, Non-operating: Sawtooth: 40G, 11 msec (Z-axis) / MIL-STD-810G |
| Certified | E-Mark-24 CE (EN 62368-1/EN55032/EN55035), FCC Class-B |
| MPT-7100V | MPT-7100V with MBT-7101V, 13th Gen Intel® Core™ i7-1365URE Processor w/ 1x 8GB DDR5-4800, 2x SSD bay, No PSU, No storage (RoHS) |
| DATASHEETS | MPT-7100V |
| CATALOGS | Intelligent Transportation Solutions (Vol.24.06) |
