Intelligent Transportation
MPT-3000V
E-mark Certified In-Vehicle Computer System with Intel® Atom® Processor E3845, WWAN Redundancy
- Fanless and ruggedized design
- Dual SIM sockets support WWAN redundancy
- Removable 2.5” device bay and CFast socket
- Rich I/O interfaces for wireless, SSD, GPS, WWAN and add-on card expansion
- Fully car battery power control
- Wide-range voltage GPIO interface
- Optional CAN 2.0B/ OBD-II function (SAE J1939)
The MPT-3000V is an E-Mark certified in-vehicle fanless computer system designed to meet the ITS market demand for IoT devices. It uses a wide-range voltage GPIO interface and provide network stability, supporting dual WAN card, redundant wireless communication, 3G/4G/LTE mPCIe modules with M.2 interface and two separate SIM slots. In addition to the adjustable tri-axial G-sensor with shock protection, it offers a wide-range 12V~36V DC power input and a wide-range -40°C to 70°C operating temperature, allowing it run in demanding transportation conditions.
The system features an innovative cable-free and swappable separate power supply module design that meets various regulatory requirements. It come with self-protection, self-debugging and reporting capabilities to actively or passively carry out the necessary protective measures. The system incorporates a rich set of I/O connectivity including two Gigabit Ethernet, two USB and three COM for optional CAN Bus 2.0B / OBD-II.
System Mainboard | MBT-3001V |
CPU Type | Intel® Atom® Processor E3845 |
Processor Speed | 1.91GHz |
Memory | 2x 2GB DDR3L-1333 SO-DIMM (Dual Channel) |

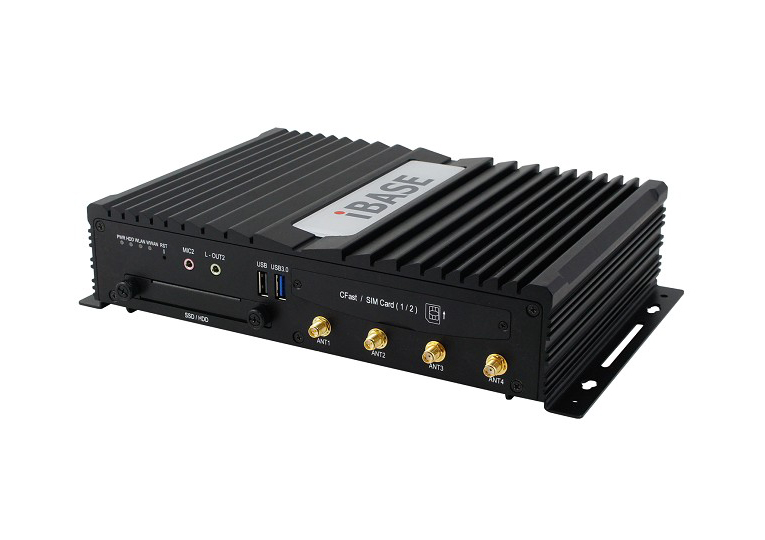

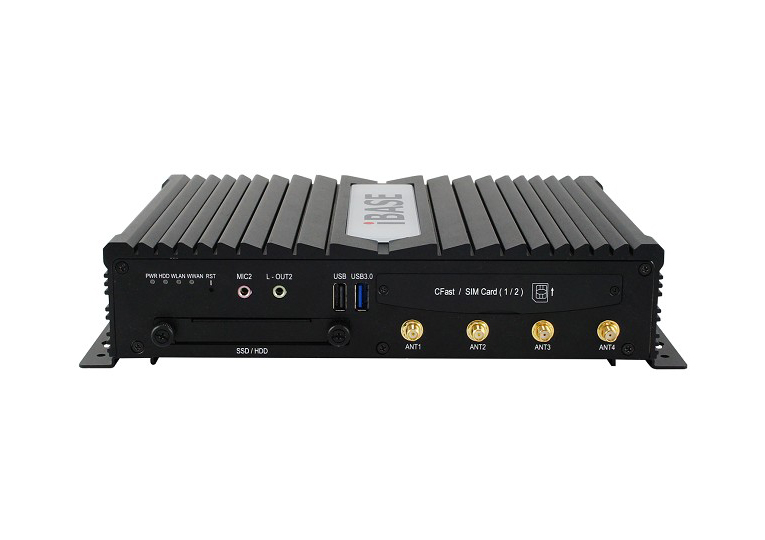

Front panel I/O | CFast, 2.5” device bay, 2nd Mic-In & Line-Out 2x SIM sockets, 1x USB 3.0, 1x USB 2.0, Reset button, Status LEDs, 4x antenna connectors |

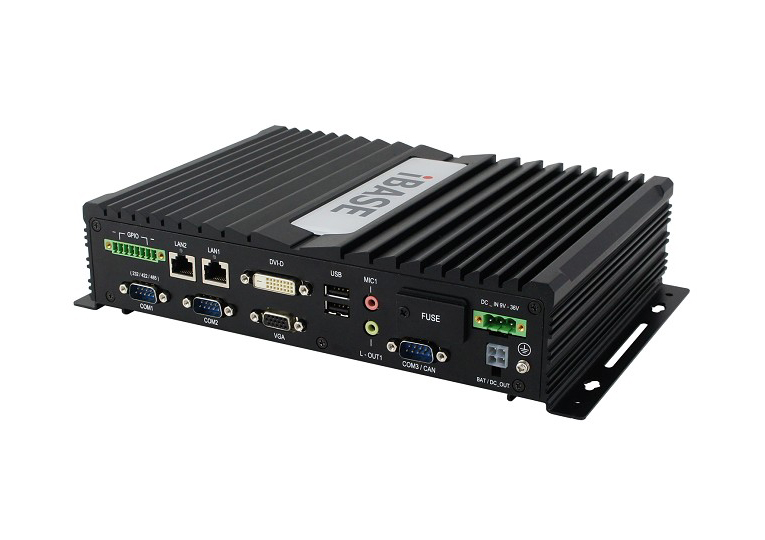

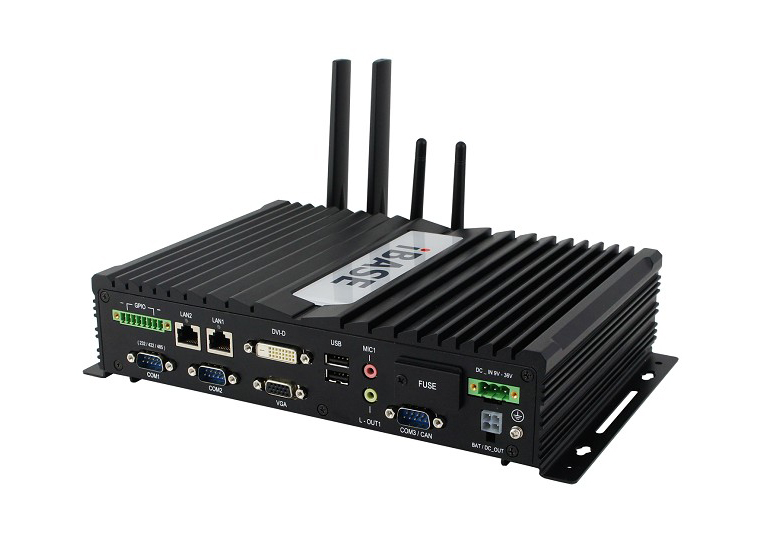

Rear Panel External I/O | DVI-D, VGA, 3x COMs (one with RS422/485 options) 2x GbE, 2x USB 2.0, power connection 1st Mic-In & Line-Out, GPIO, GbE status LEDs |
Storage | 2.5” device bay for SSD & HDD |
Expansion slots | 1x Half-size Mini PCI-E socket (USB 2.0) 1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E) 1x 2230 M.2 E-Key socket (USB 2.0 + PCI-E) 1x 3042 M.2 B-Key WWAN socket (USB 2.0) 1x 2280 M.2 M-Key SSD socket (SATA) |
Power Supply | DC 9V~36V |
Construction | Aluminum |
Chassis Color | Black |
Mounting | Custom mounting rail |
Dimensions | 256.0 (W) x 182.0 (D) x 55.0 (H) mm 10.08” (W) x 7.17” (D) x 2.16” (H) |
Operating Temperature | SSD: -40°C ~ 70°C (-40°F~158°F) HDD: -20°C ~ 50°C (-4°F~122°F) |
Storage Temperature | -40°C ~ 85°C (-40°F~185°F) |
Relative Humidity | -40°C ~ 85°C (-40°F~185°F) |
Vibration | Operating/Non-operating (SSD): 2,26 Grms (5~500 Hz) / MIL-STD-810G composite wheeled condition (Z-axis only) Operating/Non-operating (HDD): 1,04 Grms (5~500 Hz) / MIL-STD-810G highway truck condition (Z-axis only) |
Shock | Non-operating: Sawtooth: 40G, 11 msec (Z-axis) Operating: Sawtooth: 20G, 11msec (Z-axis) |
Certified | E-mark, CE class B, FCC class B |
MPT-3000VSM | MPT-3000V with MBT-3001V, Intel® Atom® Processor E3845 w/ 2x 2GB DDR3L-1333, SSD bay, No PSU, No storage (RoHS) |
LTE-ANT-INT-1 | 20CM 4G/3G WWAN antenna cable from M.2 to SMA Jack |
LTE-ANT-INT-2 | 20CM 4G/3G WWAN antenna cable from mPCIe to SMA Jack |
DATASHEETS | MPT-3000V |
CATALOGS | Intelligent Transportation Solutions (Vol.24.06) |
USER'S MANUALS | MPT-3000V |
Drivers
Model | Chipset | Video | Audio | Network | Others |
MPT-3000V |
Intel Chipset Driver Windows 7 & 8 |
Intel HD Graphics Driver Windows 7 |
Realtek High Definition Audio Driver Windows 7 & 8 |
Intel LAN Driver Windows 7 & 8 |
Intel USB 3.0 Driver Windows 7Intel TXE Driver Windows 7 & 8G-Sensor Windows 10 (64bit) |
